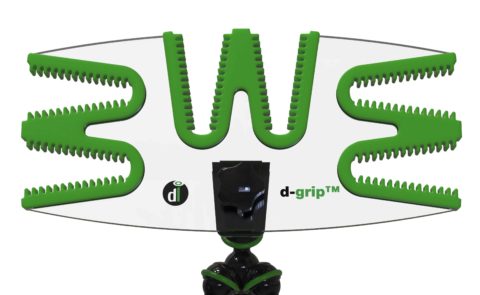

The main plate was designed to be machined from sheet Acrylic to avoid tooling costs, with TPE insert components to grip the tubes and devices being used.
VETERINARY D-GRIP COMPONENT DRAWINGS

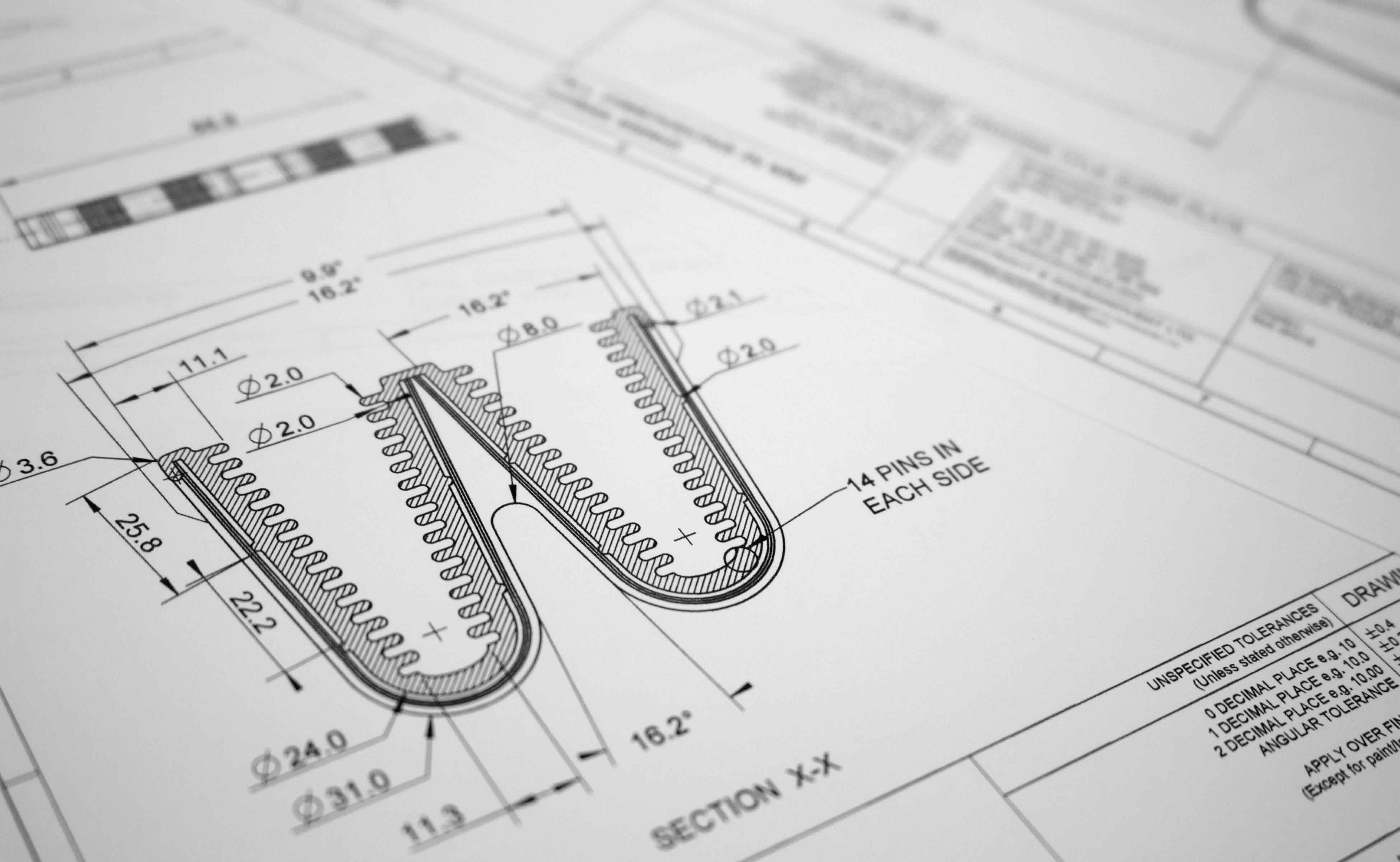

2D dimensioned component drawings were produced with tolerances and issued to the manufacturer as part of the manufacturing data package.
VETERINARY D-GRIP PRODUCT

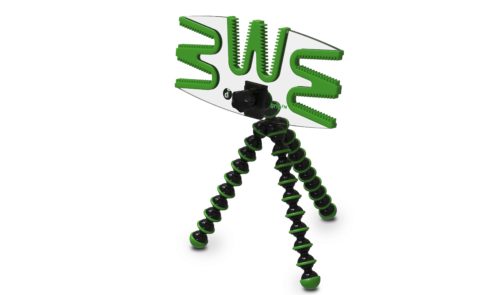

The D-Grip custom plate was assembled to a flexible tripod to allow for multiple positions and angles during veterinary procedures.
D-GRIP VETERINARY PRODUCT PACKAGING
We developed the vacuum formed sterile packaging for the veterinary product. The pack was assembled in an outer box along with user instructions.
